Features:

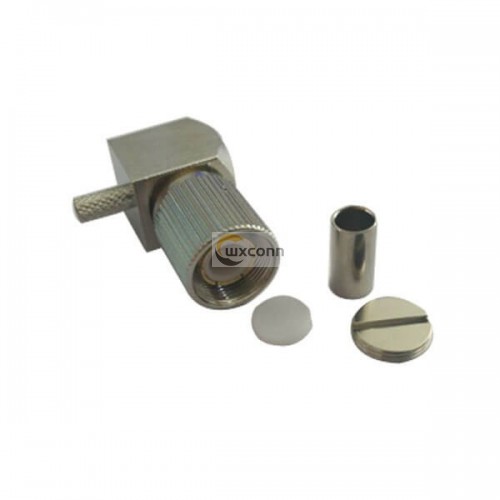

• Cable Connector, plug/male, Angled/90°, RG316,DIN1.6/5.6, Crimp Type;
• Miniature design only requried limited space for installation;
• Threaded coupling version ensure safty and high durability;
• Good performance at 75Ω impendance and up to 1GHz frequency.
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.6/5.6 Connectors:

Antenna, Base Stations, Routers, Wireless application, Switching Equipment, Computers/LAN and Telecom

Techinial Datasheet:

Electrical Characteristics

• Impedance：75 ohm
• Frequency Range: 0~1 GHz
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 1000 V rms
• Working Voltage: 335 V rms
• Center Contact Resistance ≦ 4.0 mΩ  (Milliohms max.)
• Outer Contact Resistance  2.0 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 10⁴ mΩ

Mechanical Characteristics

• Coupling: M9 x 0.5 Thread
• Contact Retention: 6 lbs min.
• Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Environmental Characteristics: -40°C ~ +155°C
