Product features:

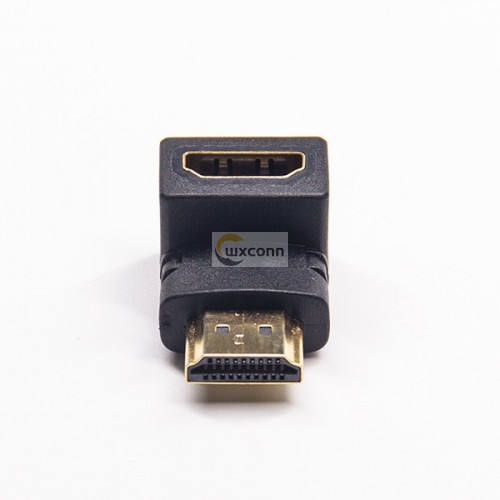

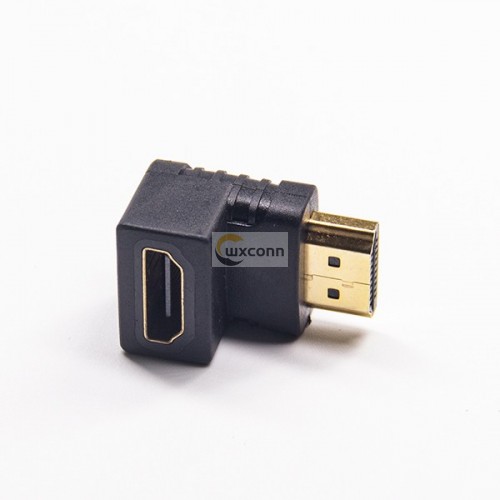

• HDMI A,terminal,female,female,straight,19+1;
• Repositions Cable Jack for Easy Access Where Space is Limited;
• Delivers Clean, Uncompressed Digital Signals;
• For Flat Panel HDTVs and Other Hook-Ups Where Space is Limited;
• Supports 1080p signal pass-through, 120Hz refresh rate;
• Molded design for Lifetime of use;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Appliance:

• TV
• Sounds equipment
• Game device
• Audio
• Communication equipment

Electrical Characteristics

• Impedance：75 ohm
• Frequency Range: 0~3Ghz
• VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
• Withstanding Voltage: 500 V rms
• Working Voltage: 170 V rms
• Center Contact Resistance ≦ 10 mΩ
• Outer Contact Resistance ≦ 5 mΩ
• Insultation Resistance ≧ 1000 mΩ
• RF Leakage -100dB min @1GHz

Mechanical Characteristics

• Coupling: 3/8-32 thread
• Cable Retention: 20 lbs min.
• Durability(mating) ≧ 500 cycles

Environmental Characteristics

• Temprature Range: -40°C ~ +60°C

Material:

Where is your products origin? Are they certificated?

wxconn have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.

What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience

When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstances, we will contact you in advance and inform the specific reasons.

How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return - You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;
