Features:

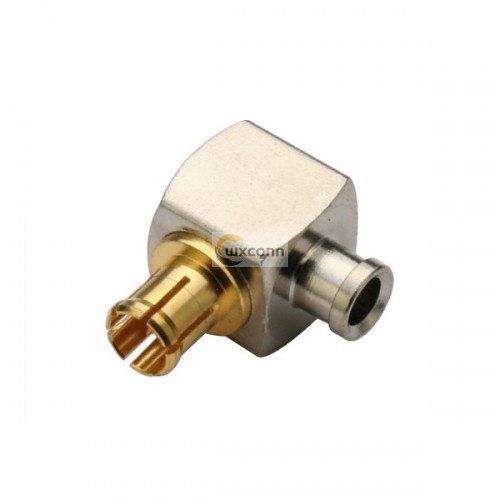

• Cable Connector, plug/male, Angled/90°, 50Ω, SF085, Solder Type;
• 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
• Snap-on Interface ideal for quick Installation and discount;
• High cost-effective with excellent boardband performance and low reflections.
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Main Application of MCX Connectors:

Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications

Techinial Datasheet:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~6 Ghz
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 1000 V rms
• Working Voltage: 335 V rms
• Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
• Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 1000 mΩ

Mechanical Characteristics

• Coupling: Snap-on/Snap-off
• Contact Retention: 4 lbs min.
• Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Environmental Characteristics: Teflon -65°C ~ +155°C
• Vibration: MIL-STD-202 Method204
• Corrosion Resistance: MIL-STD-202 Method 101

Material:
