Features:

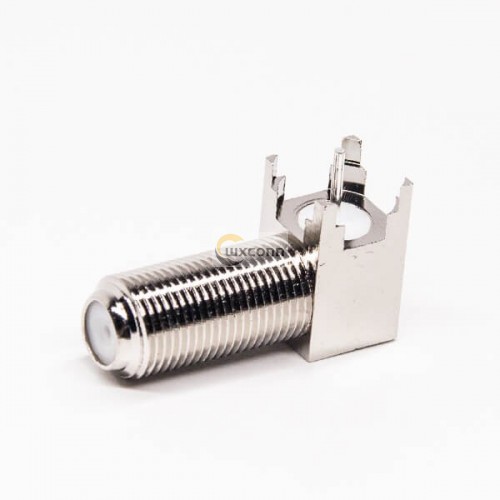

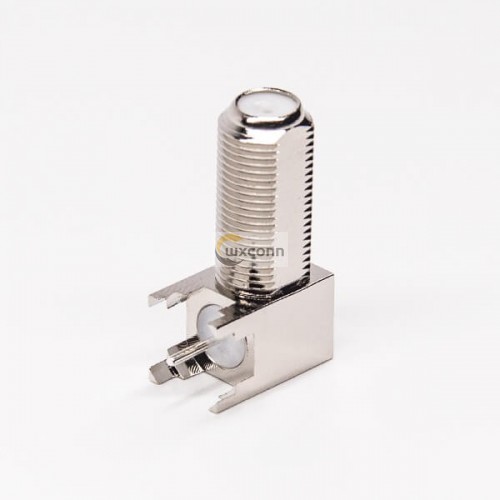

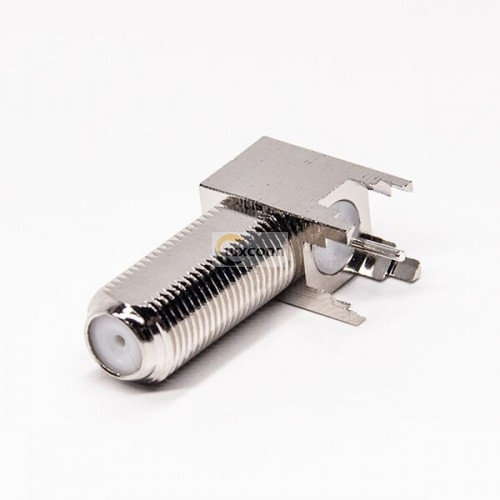

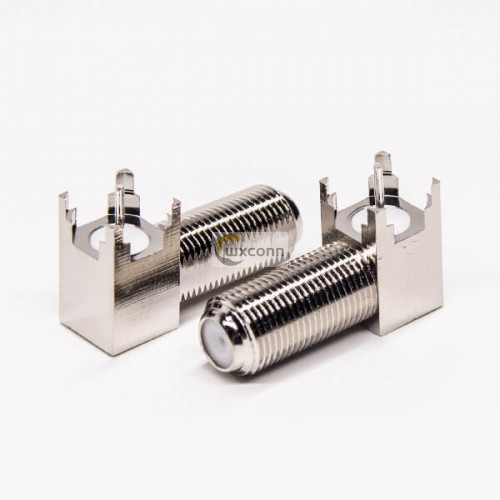

• Pcb Mount, Jack/female, Angled/90°, 75Ω, Bulkhead;
• Great security and tamper protection performance with screw on structure;
• Simple structure and component to produce F connectors in very competitive price;
• Less than 30 seconds required for wiring make it really easy to install;
• Can be visually inspect even after connection;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Main Application of F Connectors:

• Consumer Electronic: Statellite Boxes, set top boxes
• Telecommunications: CATV, CATV Networks

Techinial Datasheet:

Electrical Characteristics

• Impedance：75 ohm
• Frequency Range: 0~3Ghz
• VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
• Withstanding Voltage: 500 V rms
• Working Voltage: 170 V rms
• Center Contact Resistance ≦ 10 mΩ
• Outer Contact Resistance ≦ 5 mΩ
• Insultation Resistance ≧ 1000 mΩ
• RF Leakage -100dB min @1GHz

Mechanical Characteristics

• Coupling: 3/8-32 thread
• Cable Retention: 20 lbs min.
• Durability(mating) ≧ 500 cycles

Environmental Characteristics

• Temprature Range: -40°C ~ +60°C
