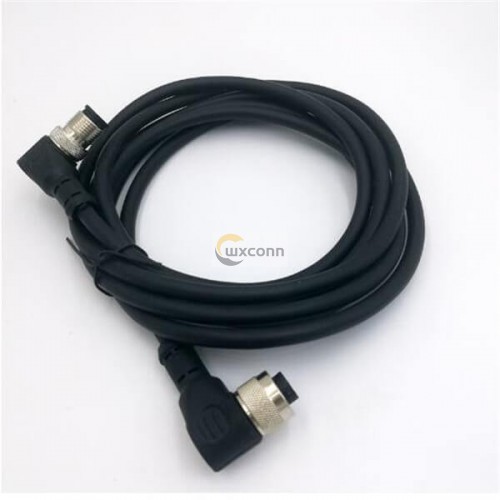

• M12 5Pin Cable A-Coding Right Angle Male To Female Connector Molded 2M AWG22 PVC Cable

  • Series: M12 Cable
  • Cable Length: 2M
  • Code: A Code
  • Pin Contant: CuZn
  • Rated Current: 4A
  • Socket Contact: CuSn
  • Rated Voltage: 60V
  • Contact Plating: Au
  • Insulation Resistance: ≥100 MΩ
  • Protection Degree: IP67
  • Contact Resistance: <10 MΩ
  • Upper Temperature: 85℃
  • Mechanical Operation: >500 Mating Cycles
  • Lower Temperature: -25℃

Miniature Sensors,   Industrial Camera,   Electrical Bike

Packaging, Labeling & Logistic,   Factory Automation, and Fieldbus Module

Nickel-Plated Brass,   Strong Waterproof Performance

High Durability,   Corrosion Resistance,   Oxidation Resistance

Cable Length Can Be Customized

Gender
Male to Female
Orientation
Right Angle to Right Angle
Connector Type
M12
Number of Positions
5 pin
Coding
A
Connection Type
Double ended cable

M12 5Pin Cable A-Coding Right Angle Male To Female Connector Molded 2M AWG22 PVC Cable

  • Product Code: GD-733-5375-3
  • Availability: In Stock
  • $15.39

  • Ex Tax: $15.39
