Product Description

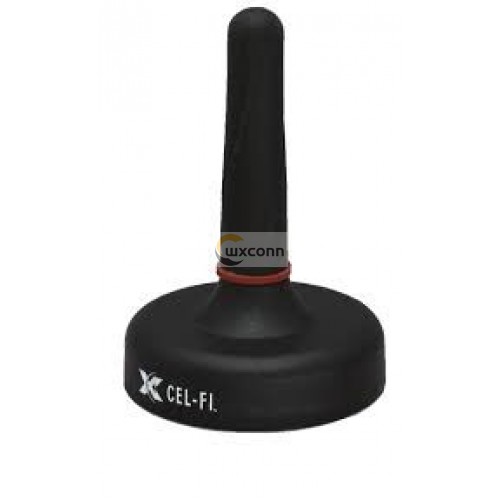

Wide-band Vehicle Roof Magnet-Mount Antenna, 10 ft. black cable, and SMA Male connector. This exterior antenna for cars, trucks, RVs, etc. is highly recommended for portability and convenient installation. This antenna is the same that is included in Cel-Fi GO M automotive cell phone signal booster kits. SKU: 591NA41100C64V35. Model: A41-V21-100 / A41V21-100 / A41-V21100 / A41V21100. Browse more 3G + 4G LTE vehicle antennas as well as premium vehicle cellular + wifi antennas.
This 50 Ohm impedance outdoor wideband cellular omni-directional antenna provides 2 to 4 dB gain depending upon signal frequency. While it is tuned for 700 MHz LTE bands (bands 12, 13, 28), it performs well for 800 MHz LTE bands (bands 5, 8, 20). The weather-resistant IP67 plastic casing is built to magnetically attach to roofs and/or trunks of all types of autos, trucks, vans, SUVs, and RVs. This is a low profile antenna with only 3 inches height but attracts cell phone/ mobile signals from all directions when installed vertically.
3" low profile wide band antenna's also called our "shorty antenna", or "stubby antenna". It features wide band 2G, 3G, 4G LTE coverage from 698 MHz to 960 MHz, 1710 MHz to 2700 MHz, and 2500 MHz to 2700 MHz. It is an external antenna (AKA., Donor Antenna, Outside Antenna, External Antenna) for outside the vehicle. It is entirely weather-proof. In USA, carriers supported include T-Mobile, Verizon, AT&T and Sprint. In Canada, cellphone service providers include Rogers Wireless, Telus Mobility, Bell Mobility and Freedom Mobile.
Summary: Nextivity Cel-Fi GO-M Outdoor Donor Antenna - Mag Mount - Black 10 ft. Cable - LTE (SMA M).
Features:
- Wide band (698 to 2700 MHz) - 2G / 3G / 4G LTE.
- Omni-directional antenna can receive signals from all directions.
- 2 dBi to 4 dBi Gain.
- For all 50 Ohm input impedance signal amplifiers.
- SMA-Male connector.
- Includes 3M brand low-loss high-performance ten feet cable.
Magnet Mount Antenna Specifications:
| Frequency | 698 to 960, 1710 to 2170, 2500 to 2700 MHz |
|---|---|
| Bands | 2, 4, 5, 12, 13, 28 |
| Input Impedance | 50 Ohms |
| Return Loss (dB) | ~-11.2 (@ 698 to 960 MHz) / ~-12.8 (@ 1710 to 2170 MHz) / ~-14.3 (@ 2500 to 2700 MHz) |
| VSWR | ~2.1:1 (@ 698 to 960 MHz) / ~1.6:1 (@ 1710 to 2170 MHz) / ~1.5:1 (@ 2500 to 2700 MHz) |
| Efficiency (%) | ~56 (@ 698 to 960 MHz) / ~51 (@ 1710 to 2170 MHz) / ~43 (@ 2500 to 2700 MHz) |
| Peak Gain (dBi) | ~2.0 (@ 698 to 960 MHz) / ~3.9 (@ 1710 to 2170 MHz) / ~3.5 (@ 2500 to 2700 MHz) |
| Average Gain (dB) | ~-2.6 (@ 698 to 960 MHz) / ~-2.9 (@ 1710 to 2170 MHz) / ~-3.6 (@ 2500 to 2700 MHz) |
| Beamwidth | 360 Degrees |
| Polarization | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
| Cable Type | DACAR302 |
| Connector Type | SMA-Male Standard |
| Mounting Type | Magnet Mount |
| Height | 3.2 inches |
| Width | 2.2 inches |
| Cable length | 10 feet |
| Radome Material | ABS UV Stable |
| Radome color | Black |
| Substance Compliance | RoHS |
| IP Rating | IP67 |
| Operating Temperature | -40° F to 85° F |
| Storage Temperature | -40° F to 85° F |
Browse more 3G + 4G LTE vehicle antennas as well as premium vehicle cellular + wifi antennas.
Vehicle Roof Donor Antenna (Mag. Mount, 50 Ohm, 10 Ft. Cable, SMA Male Connector)
- Product Code: GD-534-5739-6
- Availability: In Stock
-
$34.99
- Ex Tax: $34.99
