Product Features:

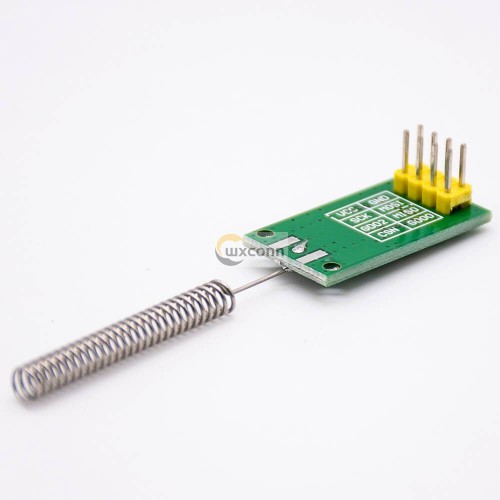

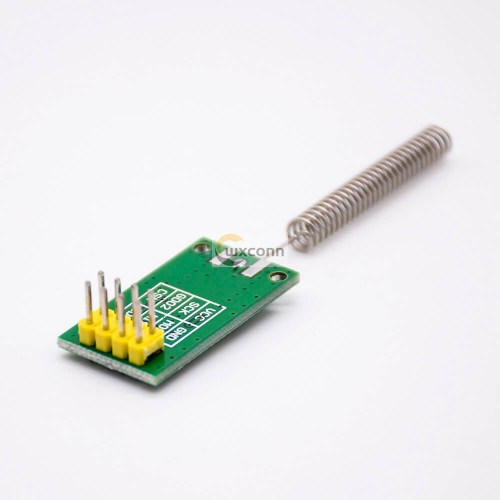

• Wireless Module, Industrial Grade, 433MHz, CC1101 Module, Wireless Communication Module
• High stability, industrial grade wireless transceiver integrated data transmission module;
• Higher reliability, more power levels, and longer transmission distance and lower power;
• Built-in power amplifier chip;
• The module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and ultra-small size;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Module Parameters:

• Operating frequency band: 2.4GHz ~ 2.525GHz (adjustable, 1MHz step)
• Interface mode: 1*8*1.27mm/2*4*2.54mm (The patch can also be used with the universal board and DuPont line)
• Supply voltage: DC 2.0-3.6V (Note: above 3.6V, the module will be permanently damaged)
• Communication level : 0.7VCC ~3.3V (VCC refers to the module supply voltage)
• Measured distance: 1000m (clear open space, maximum power, height 2m, 250k air speed)
• Transmit power: 4 levels adjustable (maximum 20dBm, approx. 100mW at maximum power)
• Air speed 250k ~ 2Mbps / 3 levels adjustable (250kbps, 1Mbps, 2Mbps)
• Shutdown current: approx. 30uA (test condition: CE=0, power-down mode, VDD=3.0V)
• Emission current: about 90mA (power supply capacity must be greater than 250m)
• Receive current: about 20mA
• Antenna form : PCB antenna / ipex carrier antenna
• Communication interface : SPI maximum speed up to 10Mbps
• Transmit length: Single packet 1~32 bytes Level 3 FIFO
• Receive length : Single packet 1~32 bytes Level 3 FIFO
• RSSI support : Not supported (only simple packet loss statistics are supported)
• Receive sensitivity: -94dBm@250kbp
• Working temperature: -40 ~ +85 °C (industrial grade)
• Storage temperature: -40 ~ +125 °C (industrial grade)
