Product Features:

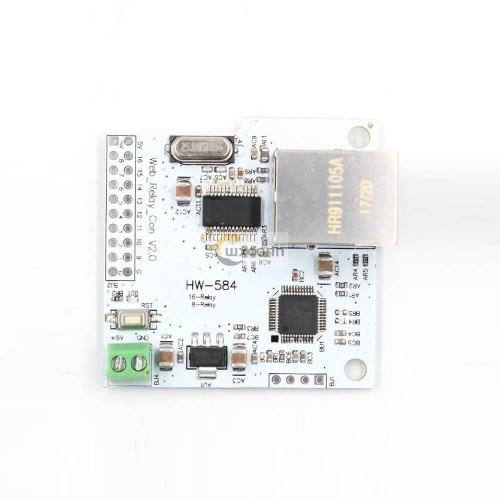

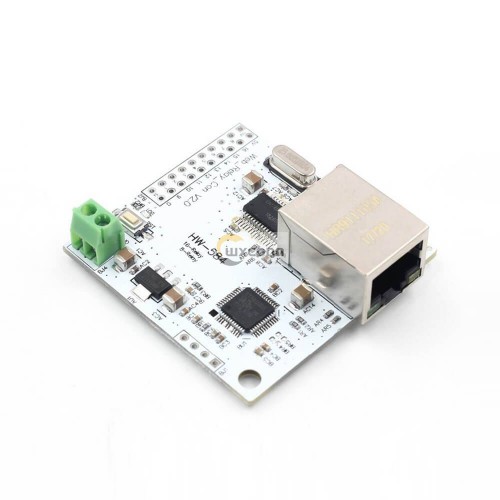

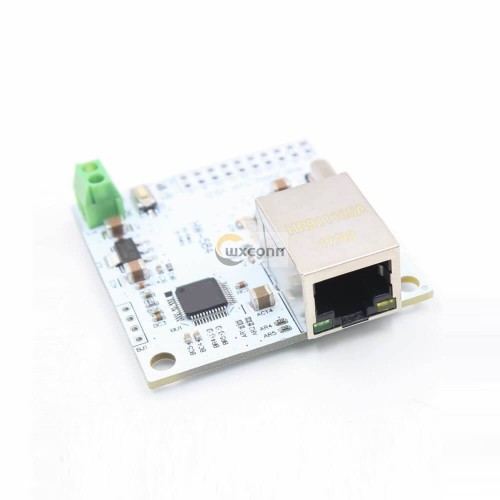

• Relay Module, 8 Way, 5V, W5100, Control Switch, PCB Mount
• With 8 relay output modules, network relay control module based on 32-bit system;
• The relay module can be controlled through the Internet or the internal network of the router;
• It can realize the purpose of remote control of electrical switches and centralized power management;
• It can be set and controlled directly through IE browser;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Application:

• Timing management of home decoration, hotels, shopping malls, Internet cafes, and Karaoke;
• Daily office, physical store monitoring, Internet of Things;
• Industrial control equipment, test equipment power control, unattended;
• Underground pipelines, mining equipment, ships, and machine rooms;
• Street lamp management, intelligent management, centralized management.

Module Parameters:

• Module size: 138m * 56mm* 18.5mm (length * width * height)
• There are 4 fixing bolt holes, the hole is 3.1mm, the spacing is 131mm*49.5mm
• Relay life: 1 million times
• Working temperature: -30~85℃

Electrical Parameters:

• External power supply voltage: 5.5V DC 2A Max
• High power with load: 5W
• The load capacity of the relay: 250VAC 10A (2500W AC) or 30VDC 10A (300W)

Application Description:

• The relay can directly control various equipment and loads;
• There are 8 normally open and 8 normally closed contacts;
• The blue KF301 terminal is more convenient to connect to the control line.
