Features:
- Pcb Mount, Jack/female, Angled/90°, 75Ω, dual;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of BNC Connectors:
Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Techinial Datasheet:
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3 GHz
- VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Method 204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish | |
| Body | Zinc | Nickel | |
| Center Contact Pin | Brass | Gold | |
| Insulator | PBT | White | |
Drawing:
Our Cooperated Connector Factory:
| Body Material | |
| Zinc Alloy | |
| Mounting Type | |
| PCB Mount | |
| Termination Style | |
| Solder Type | |
| Mounting Feature | |
| Through Hole | |
| Gender | |
| Female | |
| Function | |
| Other | |
| Orientation | |
| Right Angle | |
| Polarity | |
| Standard | |
| Body plating | |
| Nickel Plating | |
| Impedance | |
| 50Ω/75Ω | |
| Shield Termination | |
| Without | |

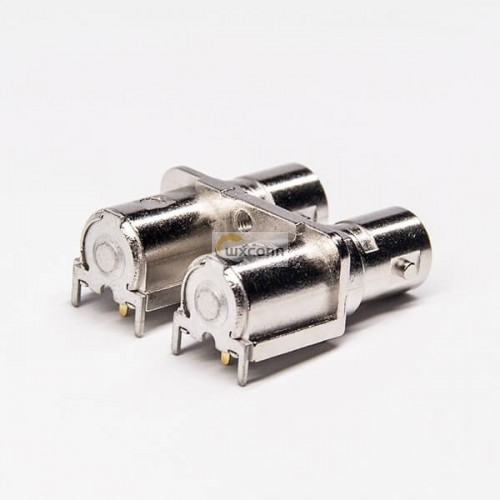

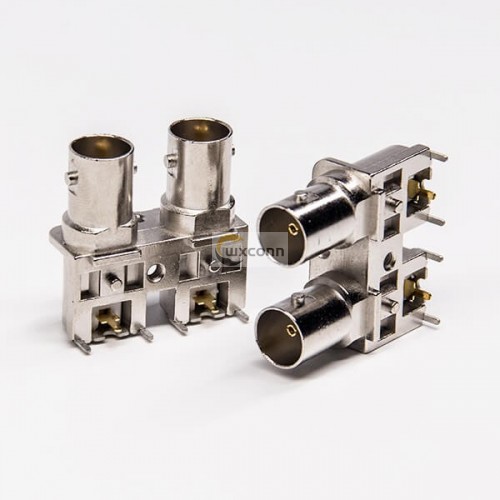

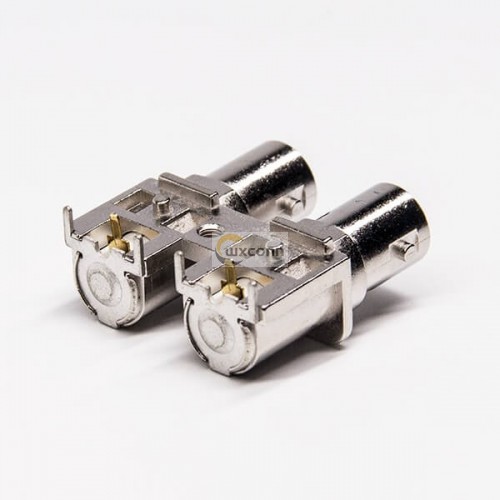

Female BNC Connector Best Buy Angled Dual Female PCB
- Product Code: GD-334-3380-4
- Availability: In Stock
-
$3.80
- Ex Tax: $3.80
