• Series: M12 Cable
  • Cable Length: 1.5M
  • Code: A Code
  • Pin Contant: CuZn
  • Rated Current: 4A
  • Socket Contact: CuSn
  • Rated Voltage: 60V
  • Contact Plating: Au
  • Insulation Resistance: ≥100 MΩ
  • Protection Degree: IP67
  • Contact Resistance: <10 MΩ
  • Upper Temperature: 85℃
  • Mechanical Operation: >500 Mating Cycles
  • Lower Temperature: -25℃

Miniature Sensors,   Industrial Camera,   Electrical Bike

Packaging, Labeling & Logistic,   Factory Automation, and Fieldbus Module

Nickel-Plated Brass,   Strong Waterproof Performance

High Durability,   Corrosion Resistance,   Oxidation Resistance

Cable Length Can Be Customized

Gender
Female
Orientation
Straight
Connector Type
M12
Number of Positions
5 pin
Coding
A
Connection Type
Single ended cable

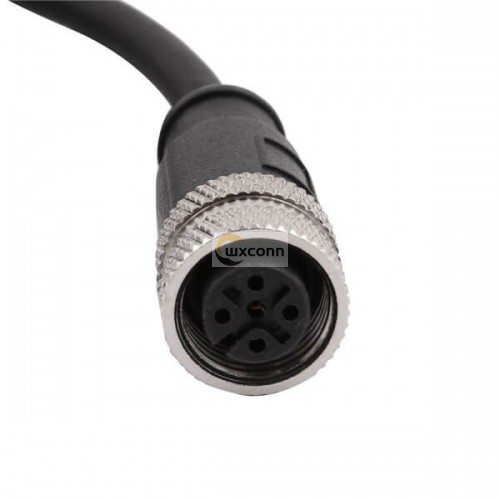

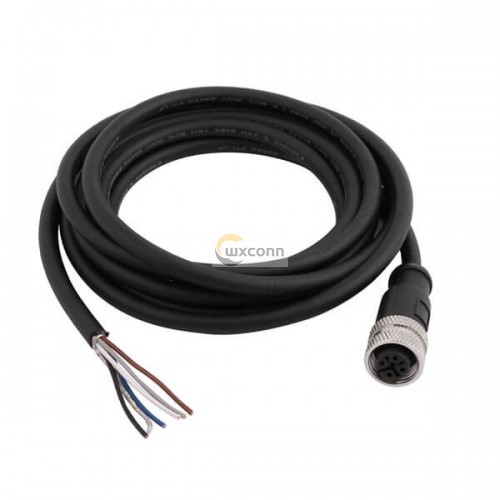

5 Pole M12 Cable Female Straight Connector Black Cable PVC 1.5M AWG22 A Code

  • Product Code: GD-733-5397-7
  • Availability: In Stock
  • $10.59

  • Ex Tax: $10.59
