Features:

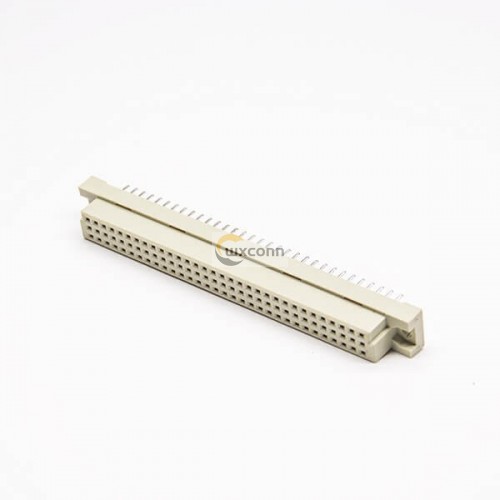

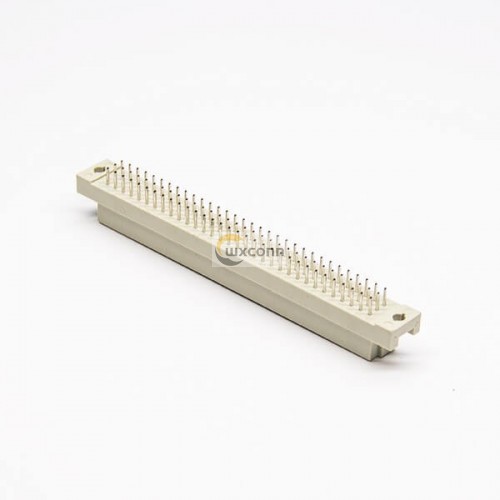

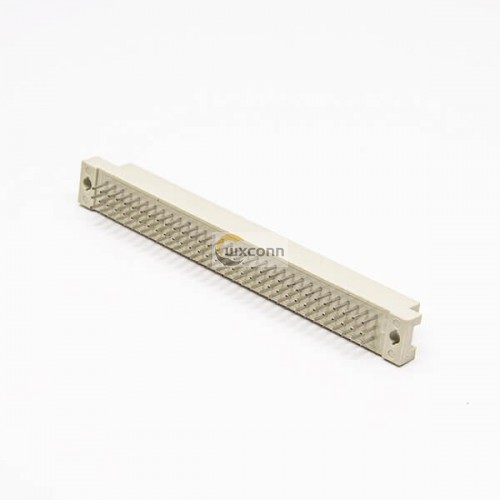

• DIN 41612, Socket,96 PIN, Female, Straight, PCB Mount,Through Hole, Solder Type, A+B+C Three Rows, Golden, 2.54mm
• conforming to DIN 41612 and IEC 603-2 specifications.
• Available up to 3 rows and 96 positions with Solder,Press-fit and pin-in Paste terminations.
• Commonly used to carry audio and video signals.
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Main Application

• Switching/Routing、Enterprise、Transmission
• Home Entertainment、White Goods、Phones
• Servers、Personal Computing、Peripheral Device
• Technology、Lighting、Process Control
• Transportation、Instrumentation、Vehicle Electronics、Energy Transmission/Distribution Control

Electrical Characteristics

• Current Rating at 20ºC: 1.5 Amp
• Insulation Resistance: ≥ 106 MΩ
• Contact Resistance: ≤ 20mΩ
• Dielectric Withstanding: 1000V
• Creepage and Clearance Distance: ≥ 1.2mm

Mechanical characteristics

• Mating Insertion Force per Contact: ≤ 0.94N
• Mating Extraction Force per Contact: ≥ 0.15N
• Contact Retention in Insulator: ≥ 20N

Environmental and Processing

• Operating Temperature: -55ºC to +125ºC
