Features:

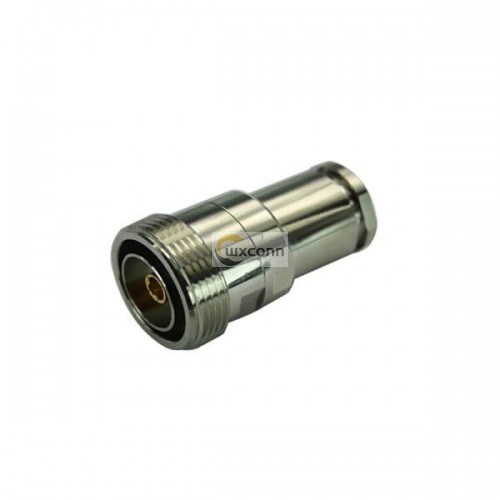

• Cable Connector, jack/female, Straight/180°, DIN7/16 Connector, Clamp Type, RG8;
• Designed to minimize signal distortion from inter modulation;
• Screw on coupling ensure high durability and allow toolless application;
• Excellent performance up to 5.2GHz frequency.
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Main Application of DIN7/16 Connectors:

Consumer Electronic: Statellite Receivers, Statellite Radio
Aerospace and Defense: High-power communication devices
Commercial Vehicle: Bluetooth
Telecommunications: Antenna, Base Station
Industriasl: Antenna Mounts, Machine to Machine Communications

Techinial Datasheet:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~7 GHz
• VSWR: 1.3 max
• Dielectric Withstanding Voltage: 4000 V rms
• Voltage Rating: ≦2700 V rms
• Insultation Resistance ≧ 5000 mΩ

Mechanical Characteristics

• Coupling: M29 x 1.5 Thread
• Durability(mating) ≧ 500 cycles

Environmental Characteristics

• Environmental Characteristics: -40°C ~ +155°C
