Features:

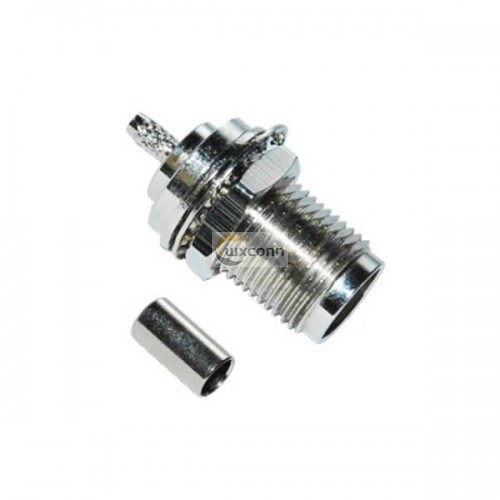

• Cable Connector, Jack/female, Straight/180°, 50Ω, Crimp Type, bulkhead, RG6, RG58, RG59;
• Thread Version of BNC used in Vibration-Intense application with high durability;
• Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 ohm impedance;
• High Quality with 30 days 100% Money back， made according to MIL-C-39012 standard;;
• From the OEM Original Factory, same quality with much better price.

Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Comonents, Radar, Networks,Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.

Techinial Datasheet:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~4 GHz for 50 ohm, 0~1Ghz for 75 ohm
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 1500 V rms
• Working Voltage: 500 V rms
• Center Contact Resistance ≦ 3.0 mΩ (Milliohms max.)
• Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
• Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)

Mechanical Characteristics

• Coupling: 7/16-28 thread
• Contact Retention: 6 lbs min.
• Mating Durability: ≧500 cycles

Environmental Characteristics

• Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
• Coupling Nut Retention: 100 lbs. min.
• Vibration: MIL-STD-202 Method 204
• Corrosion Resistance: MIL-STD-202 Method 101

Material:
